高精狙系列

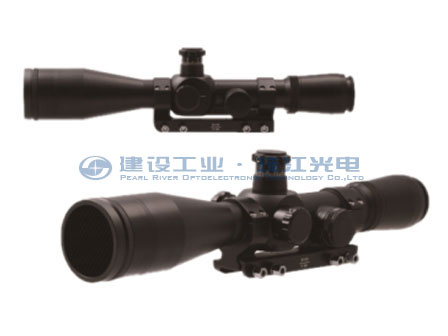

CS/OS20型白光瞄準鏡
CS/OS20型白光瞄準鏡
Type CS/OS20 Day Sight
主要用途
瞄準鏡裝備在CS/LR13型0.50英寸栓動狙擊步槍上，其主要戰術用<途是對2100m範圍內人員目标、車輛、導彈發射架、通訊掩體(tǐ™)等重要器材目标及隐蔽在障礙物後的有生目标實施精确打擊，該瞄準鏡也(y•ě)可配裝于其它0.50英寸或12.7毫米狙擊步槍。
Summary
The scope is equipped on the CS/LR13 0.50 inch bolt-action sniper rifle. Its main tactical purpose is designed for precision strikes of personnel target★s, vehicles, missile launchers, communication shelters and oth er important equipment targets within a range of 2100m, as well as' living targets hidden behind obstacles. This scope can also be equipped wi↑th other 0.50 inch or 12.7 mm sniper rifles.
技術參數
倍 率4x～15x（連續可調） | 4x～15x（連續可調） |
視 場 | 4x時4.5°，15x時1.2° |
出瞳直徑 | ≥3毫米 |
出瞳距離 | ≥80毫米 |
調焦範圍 | 50米至無窮遠（∞）連續可調 |
視度調節範圍 | -4～＋2屈光度 |
分劃調節範圍 | 8mil |
分劃調節精度 | 每檔0.05密位±15％ |
零位走動量 | ≤0.14密位 |
重量 ≠ &nβbsp; | ≤1.3千克 |
Main Specification
Magnification | 4x～15x |
Field of view | 4.5° at 4x，1.2° at 15x |
Exit pupil diameter | ≥3mm |
Exit pupil distance | ≥80mm |
Focus range | 50～∞ |
Diopter | -4～＋2 |
Reticle adjustment range（Elevation/Windage） | ±8mil |
Each click values | 0.05mil±15％ |
Zero position motion | ≤0.14mil |
Weight | ≤1.3Kg |
